Tri-Vent® Series TKZ Side Outlet Manifold Intake Filter Silencer
Available with up to 60” connections and 90,000 SCFM: The Series TKZ is a side-outlet solution for large connections with horizontal wall penetrations. Servicing filters can be done safely at grade and involves no tools.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- One year return on investment
- 30-50% less restriction
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

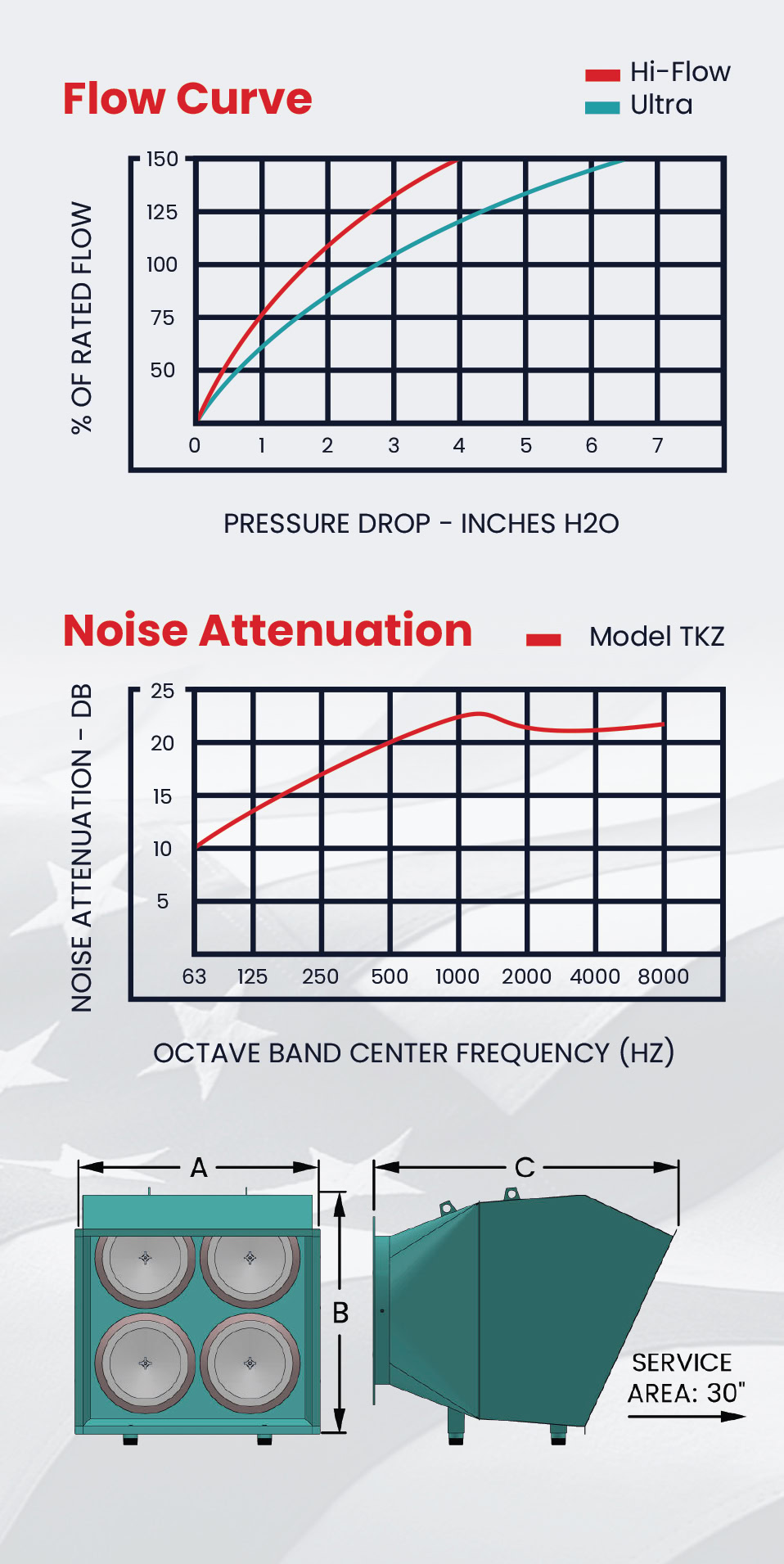

| Nominal Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model # | Element Quantity | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | C | D | Rated Flow SCFM | Weight (nom.) |
| TKZRO | 2 | E045777 | E047937 | 20" | 60 | 34 | 63 | 25 | 20,000 | 450 |
| TKZRP | 2 | E045777 | E047937 | 24" | 60 | 34 | 63 | 25 | 25,000 | 550 |
| TKZRP | 4 | E045777 | E047937 | 24" | 60 | 60 | 76 | 25 | 25,000 | 750 |
| TKZRY | 4 | E045777 | E047937 | 30" | 60 | 60 | 76 | 25 | 30,000 | 800 |
| TKZRY | 6 | E045777 | E047937 | 30" | 60 | 88 | 96 | 25 | 30,000 | 1150 |
| TKZREE | 4 | E045777 | E047937 | 36" | 60 | 60 | 76 | 25 | 40,000 | 900 |
| TKZREE | 6 | E045777 | E047937 | 36" | 60 | 88 | 96 | 25 | 40,000 | 1250 |
| TKZRDD | 6 | E045777 | E047937 | 42" | 60 | 88 | 96 | 25 | 52,000 | 1375 |
| TKZRDD | 9 | E045777 | E047937 | 42" | 88 | 88 | 96 | 25 | 52,000 | 1900 |
| TKZRCC | 6 | E045777 | E047937 | 48" | 60 | 88 | 96 | 25 | 65,000 | 1450 |
| TKZRCC | 9 | E045777 | E047937 | 48" | 88 | 88 | 96 | 25 | 65,000 | 1950 |
| TKZRHH | 9 | E045777 | E047937 | 54" | 88 | 88 | 96 | 25 | 80,000 | 2050 |
| TKZRKK | 9 | E045777 | E047937 | 60" | 88 | 88 | 96 | 25 | 90,000 | 2100 |
