Tri-Vent® Series KT8 Side-Access Manifold Inline Intake Filter Silencer
Available in 20-36” connections, The Series KT8: a small-footprint, high-volume manifold filter-silencer for inline operation or remote air intake. A gasketed door makes no-tools service even easier, low differential pressures allow for a one-year return on investment, and the zero-bypass design of the Tri-Vent® Series ensures your machine is protected.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- One year return on investment
- 150# ANSI Flange Drilling Connections
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

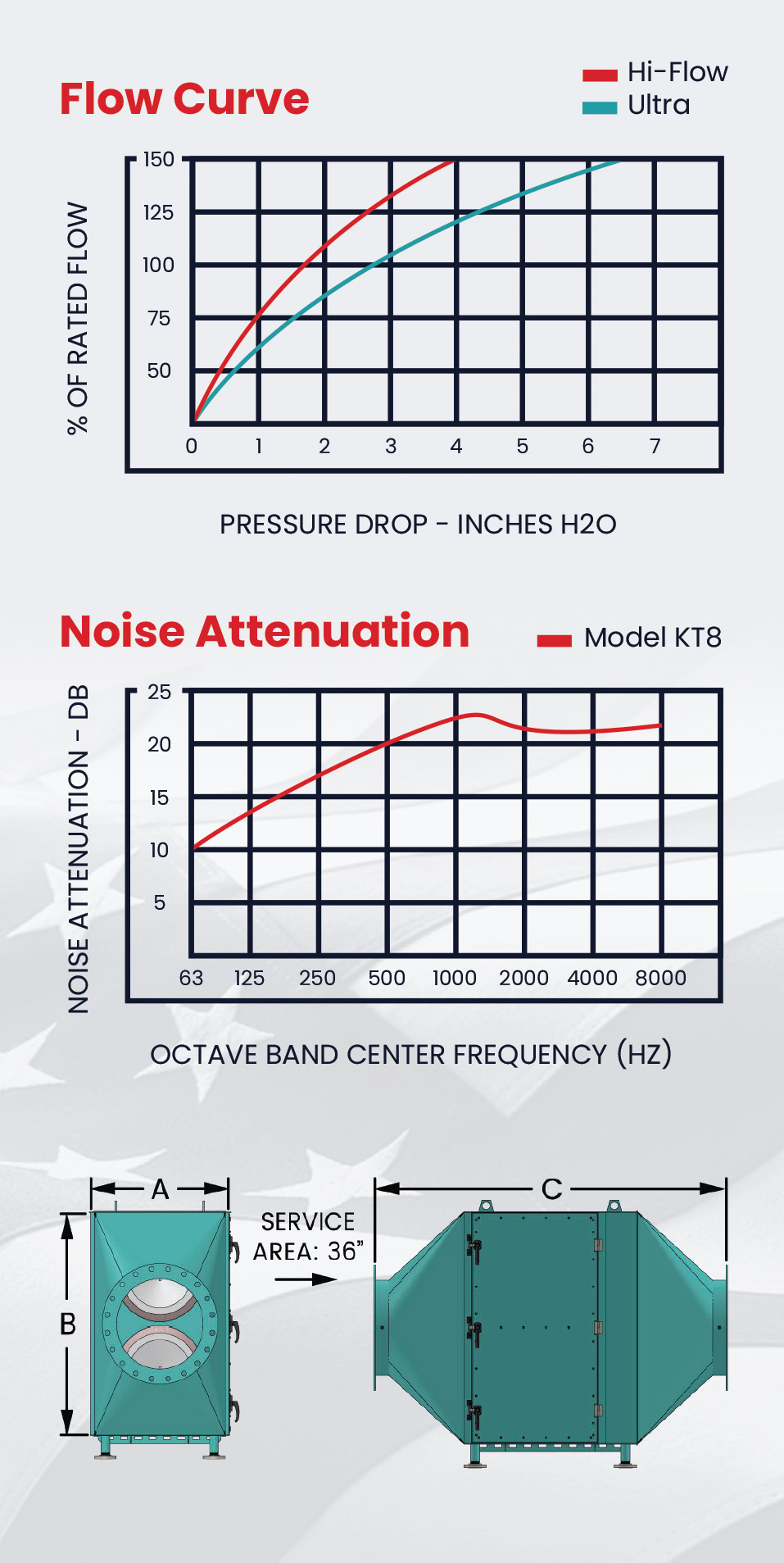

| Nominal Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model # | Element Quantity | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | C | D | Rated Flow SCFM | Weight (nom.) |
| KT8ROO- | 2 | E045777 | E047937 | 20" | 60 | 37 | 96 | 25 | 20,000 | 800 |
| KT8RPP- | 2 | E045777 | E047937 | 24" | 60 | 37 | 96 | 25 | 25,000 | 800 |
| KT8RPP- | 4 | E045777 | E047937 | 24" | 60 | 60 | 96 | 25 | 25,000 | 1450 |
| KT8RYY- | 4 | E045777 | E047937 | 30" | 60 | 60 | 96 | 25 | 30,000 | 1500 |
| KT8RYY- | 6 | E045777 | E047937 | 30" | 88 | 60 | 96 | 25 | 30,000 | 2050 |
| KT8REE- | 4 | E045777 | E047937 | 36" | 60 | 60 | 96 | 25 | 40,000 | 1550 |
| KT8REE- | 6 | E045777 | E047937 | 36" | 88 | 60 | 96 | 25 | 40,000 | 2100 |
| KT8RDD- | 6 | E045777 | E047937 | 42" | 88 | 60 | 96 | 25 | 52,000 | 2150 |
| KT8RDD- | 9 | E045777 | E047937 | 42" | 88 | 88 | 140 | 25 | 52,000 | 2350 |
| KT8RCC- | 6 | E045777 | E047937 | 48” | 88 | 60 | 96 | 25 | 52,000 | 2200 |
| KT8RCC- | 9 | E045777 | E047937 | 48” | 88 | 88 | 140 | 25 | 65,000 | 2400 |
| KT8RHH- | 9 | E045777 | E047937 | 54" | 88 | 88 | 140 | 25 | 80,000 | 2450 |
| KT8RKK- | 9 | E045777 | E047937 | 60” | 88 | 88 | 140 | 25 | 90,000 | 2450 |
