Tri-Vent® Series P04 Intake Filter
The Tri-Vent® Series P04 offers zero-bypass protection with 30-50% lower initial restriction. Light weight Tri-Vent® elements with Enduralast® Synthetic Media deliver industry benchmark dust holding capacity, extended service life, and No-Tools element changes. Switch to the Tri-Vent® Series P04 and reduce energy consumption enough for 100% return on investment in less than a year.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- One year return on investment
- 30-50% less restriction
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

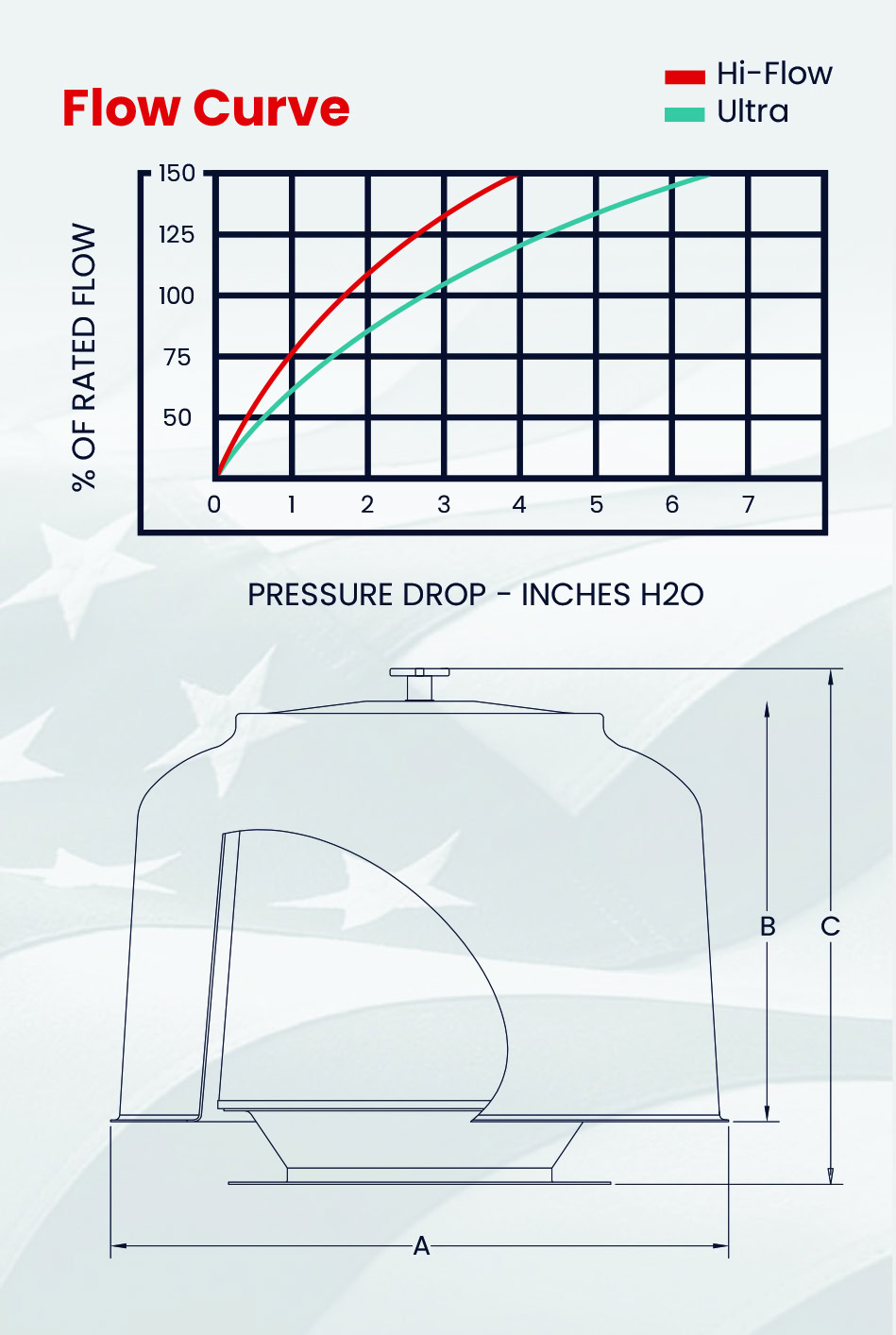

| Enduralast® Element Number | Nominal Dimensions | |||||||
|---|---|---|---|---|---|---|---|---|
| Model # | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | C | Rated Flow SCFM | Weight (nom.) |
| P04RG- | E045773 | E047933 | 3" | 16 | 8 | 14 | 600 | 25 |
| P04RH- | E045773 | E047933 | 4" | 16 | 8 | 14 | 900 | 25 |
| P04RR- | E045773 | E047933 | 5" | 16 | 8 | 14 | 1100 | 25 |
| P04RI- | E045773 | E047933 | 6" | 16 | 8 | 14 | 1350 | 25 |
| P04RI- | E045774 | E047934 | 6" | 26 | 11 | 17 | 2000 | 40 |
| P04RI- | E045775 | E047935 | 6" | 26 | 15 | 22 | 2250 | 45 |
| P04RJ- | E045774 | E047934 | 8" | 26 | 11 | 17 | 2500 | 50 |
| P04RJ- | E045775 | E047935 | 8" | 27 | 15 | 22 | 2900 | 55 |
| P04RJ- | E045776 | E047936 | 8" | 28 | 20 | 26 | 3300 | 60 |
| P04RK- | E045774 | E047934 | 10" | 26 | 11 | 17 | 3750 | 55 |
| P04RK- | E045775 | E047935 | 10" | 27 | 15 | 22 | 4000 | 60 |
| P04RK- | E045776 | E047936 | 10" | 28 | 20 | 26 | 4250 | 65 |
| P04RL- | E045775 | E047935 | 12" | 27 | 15 | 22 | 5150 | 60 |
| P04RL- | E045776 | E047936 | 12" | 28 | 20 | 26 | 6500 | 65 |
| P04RL- | E045777 | E047937 | 12" | 38 | 26 | 30 | 8250 | 70 |
| P04RM- | E045777 | E047937 | 14" | 38 | 26 | 30 | 12000 | 80 |
| P04RN- | E045777 | E047937 | 16" | 38 | 26 | 30 | 15000 | 90 |
| P04RS- | E045777 | E047937 | 18" | 38 | 26 | 30 | 18000 | 100 |
Options:
- 3-6″ NPT connections
- Wire Mesh Medium, 60% @ AC Fine Dust
- Custom fittings
- Special coatings
- FDA/USDA standards
- Stainless Steel
- RAL Color Matching
