Tri-Vent® Series P08 L-Configuration Inline Intake/Vacuum Filter
Low-weight, low-footprint, and low pressure-loss. The series P08 is an engineered solution for the traditionally heavy, restrictive L-configuration inline filter silencer. Available with No-Tools servicing for most sizes, the Series P08 allows for remote air access and a one-year return on investment.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- One year return on investment
- 30-50% less restriction
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

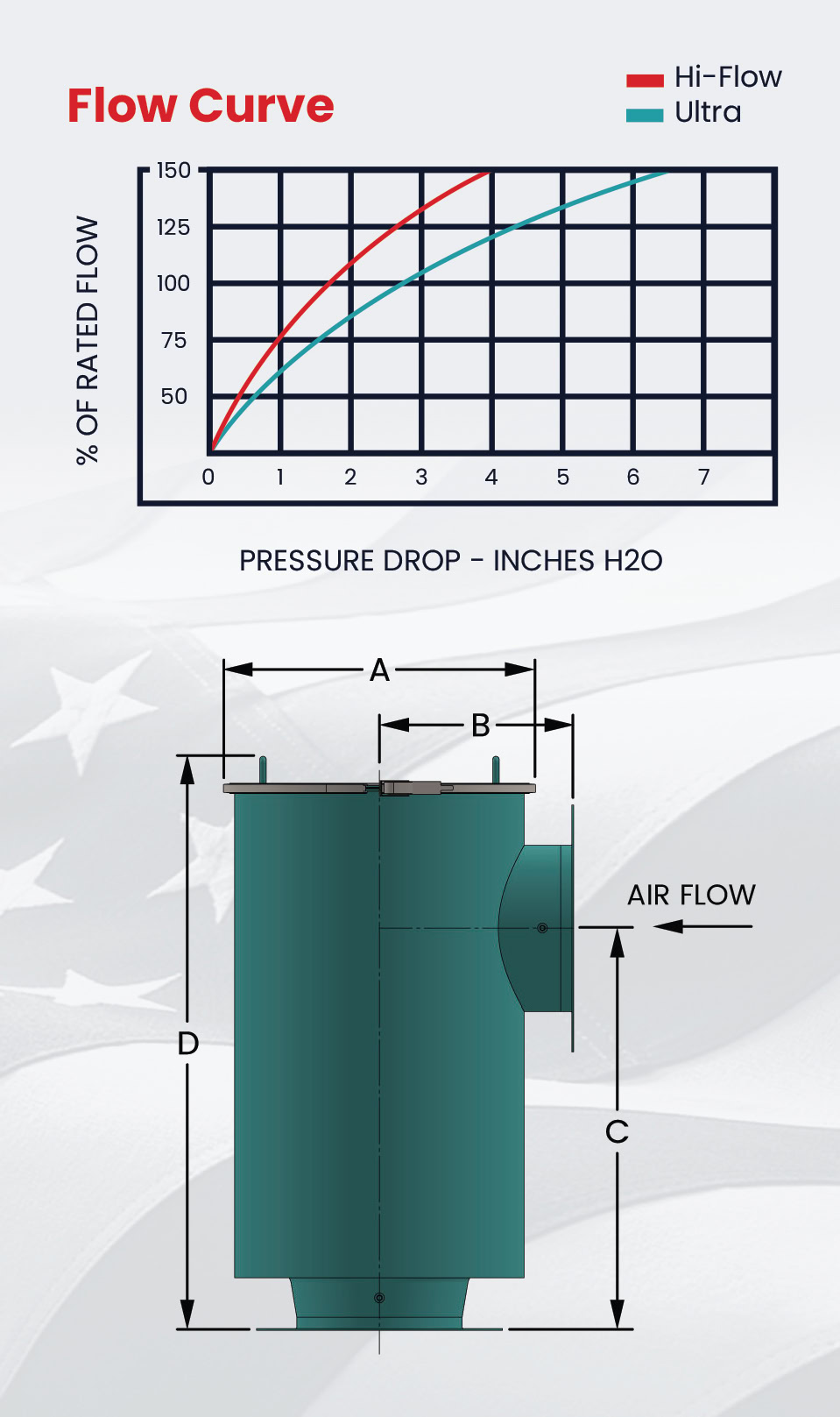

| Nominal Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model # | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | C | D | Rated Flow SCFM | Weight (nom.) |
| P08RGG- | E045773 | E047933 | 3" | 16 | 11 | 18 | 23 | 600 | 50 |
| P08RHH- | E045773 | E047933 | 4" | 16 | 11 | 18 | 23 | 900 | 50 |
| P08RRR- | E045773 | E047933 | 5" | 16 | 11 | 18 | 23 | 1,100 | 50 |
| P08RII- | E045773 | E047933 | 6" | 16 | 11 | 18 | 23 | 1,350 | 55 |
| P08RII- | E045774 | E047934 | 6" | 20 | 13 | 20 | 27 | 2,000 | 75 |
| P08RII- | E045775 | E047935 | 6" | 20 | 13 | 24 | 31 | 2,250 | 85 |
| P08RJJ- | E045774 | E047934 | 8" | 20 | 13 | 20 | 27 | 2,500 | 80 |
| P08RJJ- | E045775 | E047935 | 8" | 20 | 13 | 24 | 31 | 2,900 | 85 |
| P08RJJ- | E045776 | E047936 | 8" | 25 | 18 | 28 | 35 | 3,300 | 125 |
| P08RKK- | E045774 | E047934 | 10" | 20 | 13 | 20 | 30 | 3,750 | 90 |
| P08RKK- | E045775 | E047935 | 10" | 20 | 13 | 24 | 33 | 4,000 | 95 |
| P08RKK- | E045776 | E047936 | 10" | 25 | 18 | 28 | 37 | 4,250 | 135 |
| P08RLL- | E045775 | E047935 | 12" | 20 | 13 | 24 | 37 | 5,150 | 100 |
| P08RLL- | E045776 | E047936 | 12" | 25 | 18 | 28 | 40 | 6,500 | 155 |
| P08RLL- | E045777 | E047937 | 12" | 30 | 21 | 38 | 46 | 8,250 | 215 |
| P08RMM- | E045777 | E047937 | 14" | 30 | 21 | 38 | 48 | 12,000 | 230 |
| P08RNN- | E045777 | E047937 | 16" | 30 | 21 | 38 | 50 | 15,000 | 240 |
| P08RSS- | E045777 | E047937 | 18" | 30 | 21 | 38 | 52 | 18,000 | 250 |
Options:
- 3-6″ NPT connections
- Wire Mesh Medium, 60% @ AC Fine Dust
- Custom fittings
- Special coatings
- FDA/USDA standards
- Stainless Steel
- RAL Color Matching
