Tri-Vent® Series TKT Bottom Outlet Intake Filter Silencer
A small footprint solution for high volume equipment: the all-weather, zero-bypass Series TKT protects equipment with 20-36” inlet connections. Tri-Vent® technology extends filter element service life and reduced energy consumption pays for the TKT in one year or less. When service is required, no-tools element changes make maintenance safe and easy.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- One year return on investment
- 30-50% less restriction
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

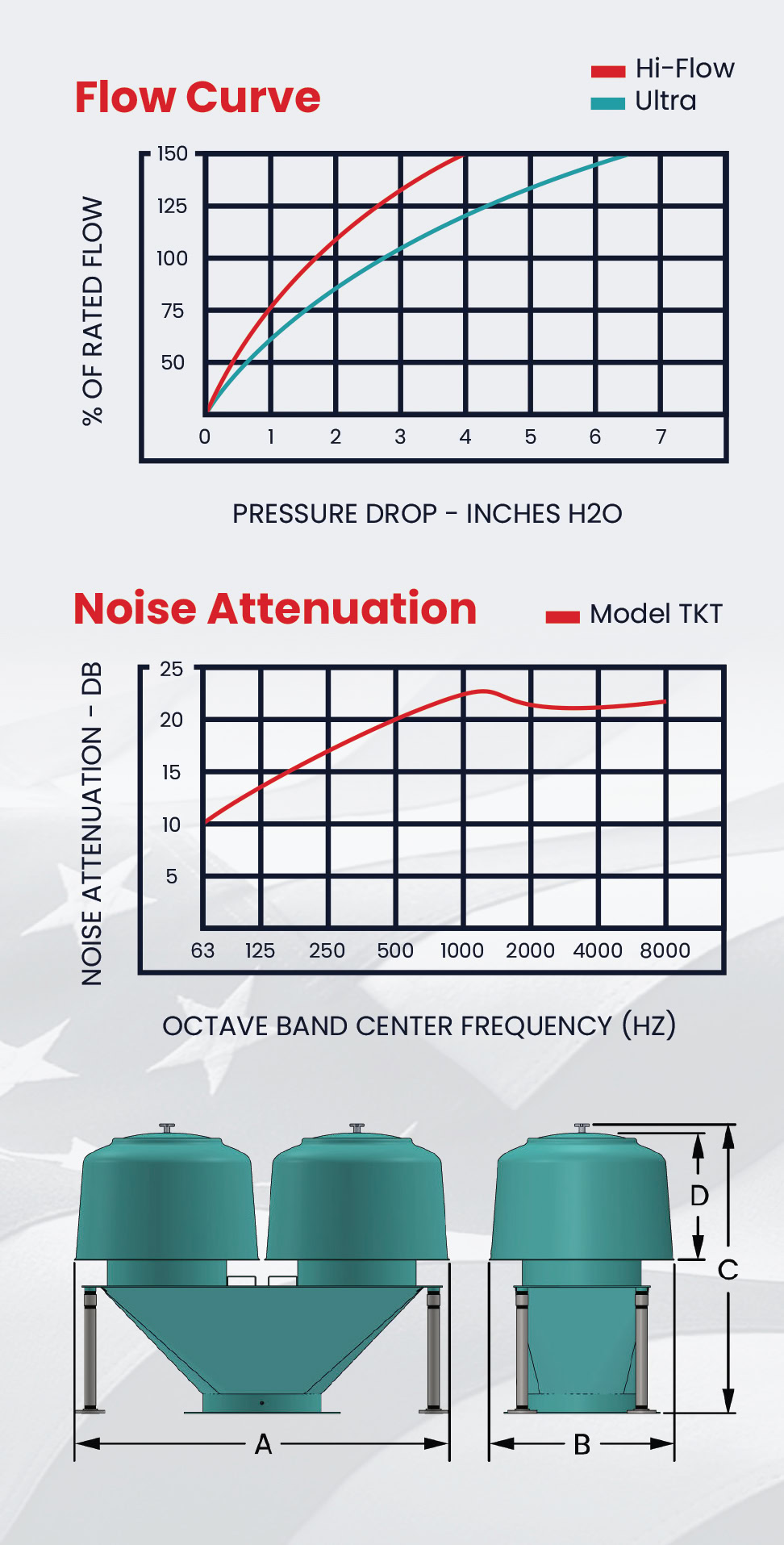

| Nominal Dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Model # | Element Quantity | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | C | D | Rated Flow SCFM | Weight (nom.) |
| TKTRO- | 2 | E045777 | E047937 | 20" | 78 | 38 | 60 | 25 | 20,000 | 450 |
| TKTRP- | 2 | E045777 | E047937 | 24" | 78 | 38 | 60 | 25 | 25,000 | 550 |
| TKTRP- | 4 | E045777 | E047937 | 24" | 78 | 78 | 60 | 25 | 25,000 | 750 |
| TKTRY- | 4 | E045777 | E047937 | 30" | 78 | 78 | 60 | 25 | 30,000 | 800 |
| TKTRY- | 6 | E045777 | E047937 | 30" | 116 | 78 | 68 | 25 | 30,000 | 1150 |
| TKTREE- | 4 | E045777 | E047937 | 36" | 78 | 78 | 60 | 25 | 40,000 | 900 |
| TKTREE- | 6 | E045777 | E047937 | 36" | 116 | 78 | 68 | 25 | 40,000 | 1250 |
| TKTRDD- | 6 | E045777 | E047937 | 42" | 116 | 78 | 68 | 25 | 52,000 | 1375 |
| TKTRCC- | 6 | E045777 | E047937 | 48" | 116 | 78 | 68 | 25 | 65,000 | 1450 |
