Tri-Vent® Series TM09 Top-Outlet Intake Filter Silencer
Keep technicians Safe! The Tri-Vent® Series TM09, top-outlet filter silencer eliminates the necessity for ladders, allowing a single operator to change elements while standing on firm ground.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- 30-50% less restriction
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

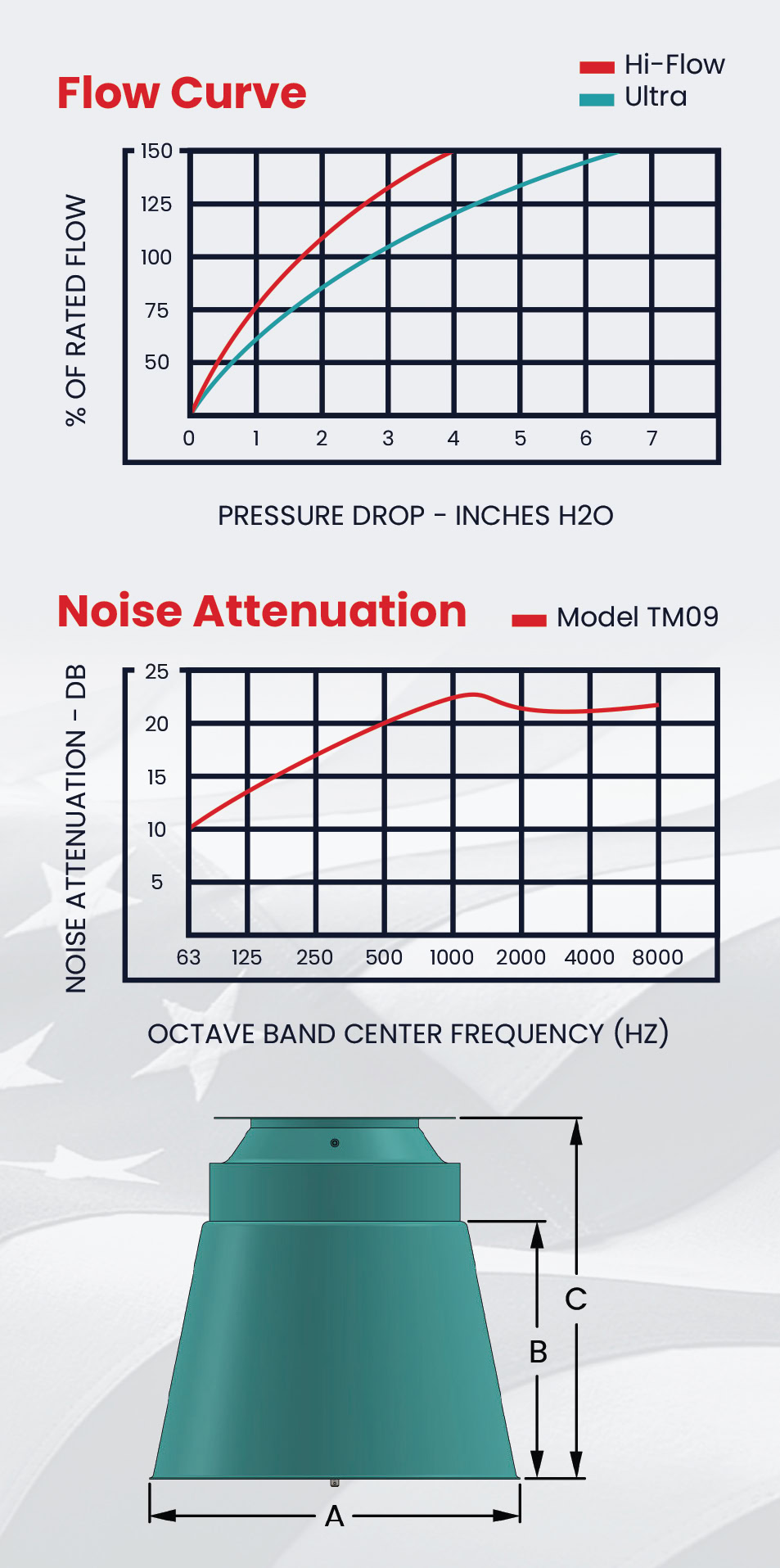

| Nominal Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model # | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | C | Rated Flow SCFM | Weight (nom.) |
| TM09RI- | E045775 | E047935 | 6" | 28 | 20 | 30 | 2,250 | 65 |
| TM09RJ- | E045775 | E047935 | 8" | 28 | 20 | 30 | 2,900 | 70 |
| TM09RJ- | E045776 | E047936 | 8" | 28 | 20 | 30 | 3,300 | 75 |
| TM09RK- | E045775 | E047935 | 10" | 28 | 20 | 30 | 4,000 | 75 |
| TM09RK- | E045776 | E047936 | 10" | 28 | 20 | 30 | 4,250 | 80 |
| TM09RL- | E045775 | E047935 | 12" | 28 | 20 | 30 | 5,150 | 80 |
| TM09RL- | E045776 | E047936 | 12" | 28 | 20 | 30 | 6,500 | 85 |
| TM09RL- | E045777 | E047937 | 12" | 38 | 26 | 36 | 8,250 | 100 |
| TM09RM- | E045777 | E047937 | 14" | 38 | 26 | 36 | 12,000 | 115 |
| TM09RN- | E045777 | E047937 | 16" | 38 | 26 | 36 | 15,000 | 120 |
| TM09RS- | E045777 | E047937 | 18" | 38 | 26 | 36 | 18,000 | 125 |
Options:
- 3-6″ NPT connections
- Wire Mesh Medium, 60% @ AC Fine Dust
- Custom fittings
- Special coatings
- FDA/USDA standards
- Stainless Steel
- RAL Color Matching
