Tri-Vent® Series TZ09 Side Outlet Intake Filter Silencer
For inlets too high for the bottom outlet P09 and too low for the top outlet TM09, Endustra engineered the Tri-Vent® Series TZ09 Side Outlet Intake Filter Silencer. Field tested and proven to discourage extreme weather ingress, the TZ09 protects equipment and eliminates ladders.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- One year return on investment
- 30-50% less restriction
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

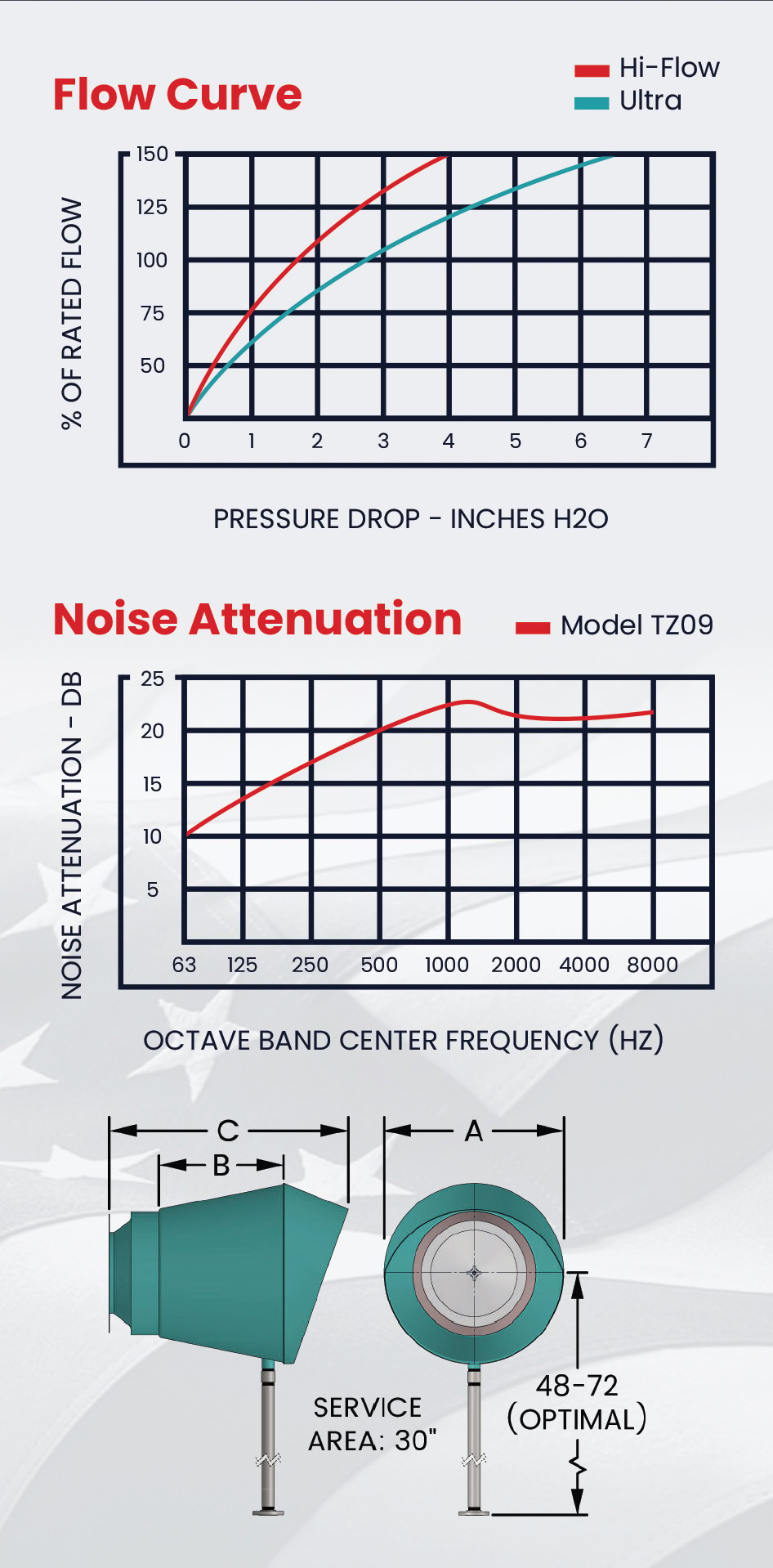

| Nominal Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model # | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | C | Rated Flow SCFM | Weight (nom.) |
| TZ09RI- | E045776 | E047936 | 6" | 27 | 20 | 42 | 2,250 | 105 |
| TZ09RJ- | E045776 | E047936 | 8" | 27 | 20 | 42 | 3,300 | 110 |
| TZ09RK- | E045776 | E047936 | 10" | 27 | 20 | 42 | 4,250 | 115 |
| TZ09RL- | E045776 | E047936 | 12" | 27 | 20 | 42 | 6,500 | 125 |
| TZ09RL- | E045777 | E047937 | 12" | 36 | 25 | 48 | 8,250 | 140 |
| TZ09RM- | E045777 | E047937 | 14" | 36 | 25 | 48 | 12,000 | 150 |
| TZ09RN- | E045777 | E047937 | 16" | 36 | 25 | 48 | 15,000 | 160 |
| TZ09RS- | E045777 | E047937 | 18" | 36 | 25 | 48 | 18,000 | 170 |
Options:
- 3-6″ NPT connections
- Wire Mesh Medium, 60% @ AC Fine Dust
- Custom fittings
- Special coatings
- FDA/USDA standards
