Tri-Vent® Series K08 Side-Access Inline Intake Filters
Remote air intake with no tools: The Series K08 side-access inline filter allows air to be taken from remote sources while simultaneously making maintenance easier by removing tools and reducing power consumption enough for a one-year return on investment.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- One year return on investment
- 150# ANSI Flange Drilling Connections
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

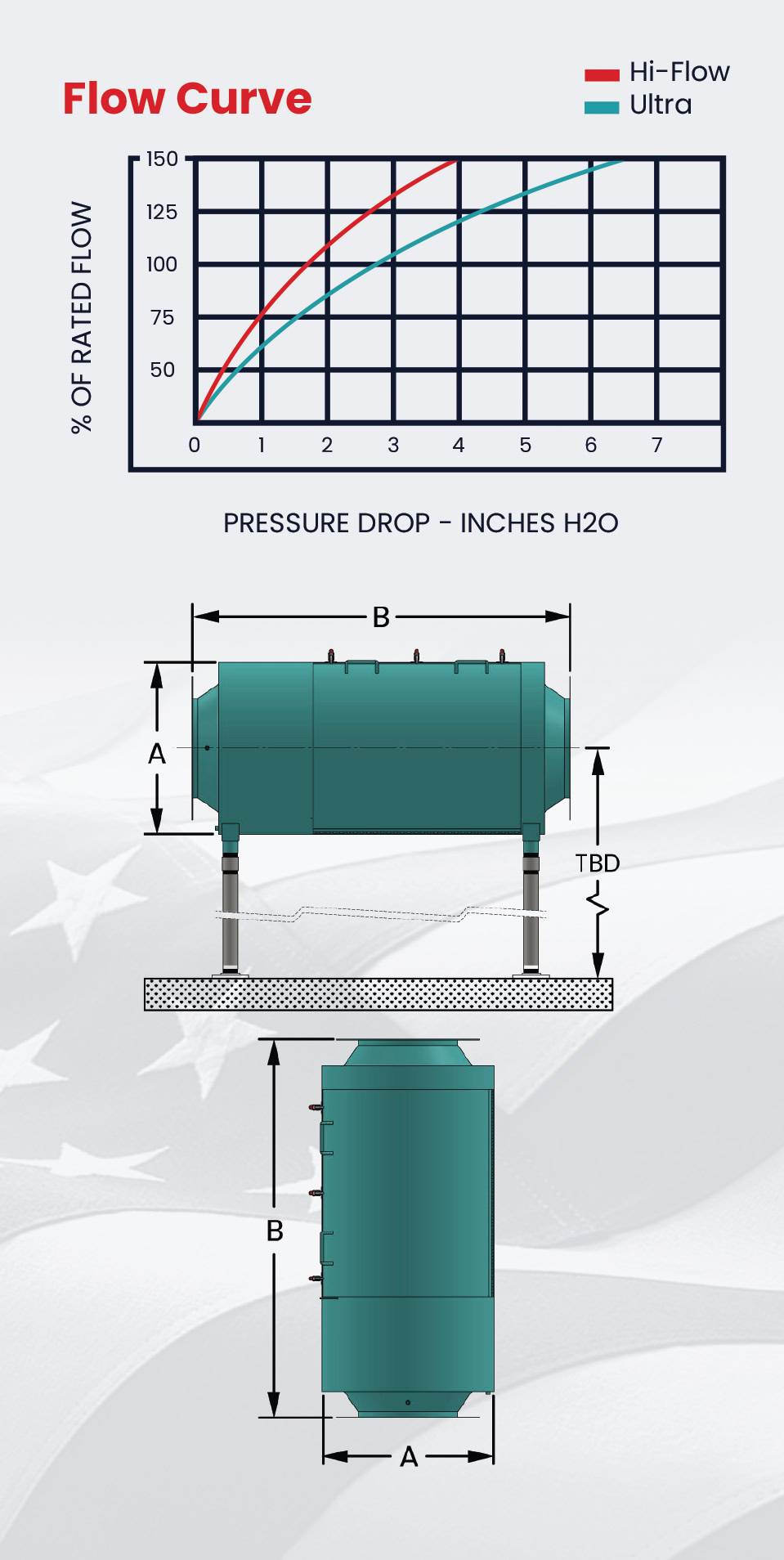

| Nominal Dimensions | |||||||
|---|---|---|---|---|---|---|---|
| Model # | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | Rated Flow SCFM | Weight (nom.) |
| K08RII- | E045775 | E047935 | 6" | 22.25 | 42 | 2,250 | 125 |
| K08RJJ- | E045775 | E047935 | 8" | 22.25 | 42 | 2,900 | 125 |
| K08RJJ- | E045776 | E047936 | 8" | 22.25 | 50 | 3,300 | 160 |
| K08RKK- | E045775 | E047935 | 10" | 22.25 | 42 | 4,000 | 125 |
| K08RKK- | E045776 | E047936 | 10" | 22.25 | 50 | 4,250 | 160 |
| K08RLL- | E045775 | E047935 | 12" | 22.25 | 42 | 5,150 | 140 |
| K08RLL- | E045776 | E047936 | 12" | 22.25 | 50 | 6,500 | 175 |
| K08RLL- | E045777 | E047937 | 12" | 28.25 | 62 | 8,250 | 250 |
| K08RMM- | E045777 | E047937 | 14" | 28.25 | 62 | 12,000 | 260 |
| K08RNN- | E045777 | E047937 | 16" | 28.25 | 62 | 15,000 | 270 |
| K08RSS- | E045777 | E047937 | 18" | 28.25 | 62 | 18,000 | 280 |
Options:
- 3-6″ NPT connections
- Wire Mesh Medium, 60% @ AC Fine Dust
- Custom fittings
- Special coatings
- FDA/USDA standards
