Tri-Vent® Series P09 Intake Filter Silencer
If noise in an issue in your installation, the Tri-Vent® Series P09 Intake Filter Silencer provides zero-bypass filtration and attenuates air inlet sound pressure. Reduce noise, reduce power consumption, and extend equipment service life.
Standard Features
- Zero-Bypass Filtration
- Reduced power consumption
- One year return on investment
- 30-50% less restriction
- Light Weight
- No-Tools element changes
- Enduralast® Synthetic Media
- Powder Coated
Specifications
For more information or to order, select model number and click on corresponding element number below.

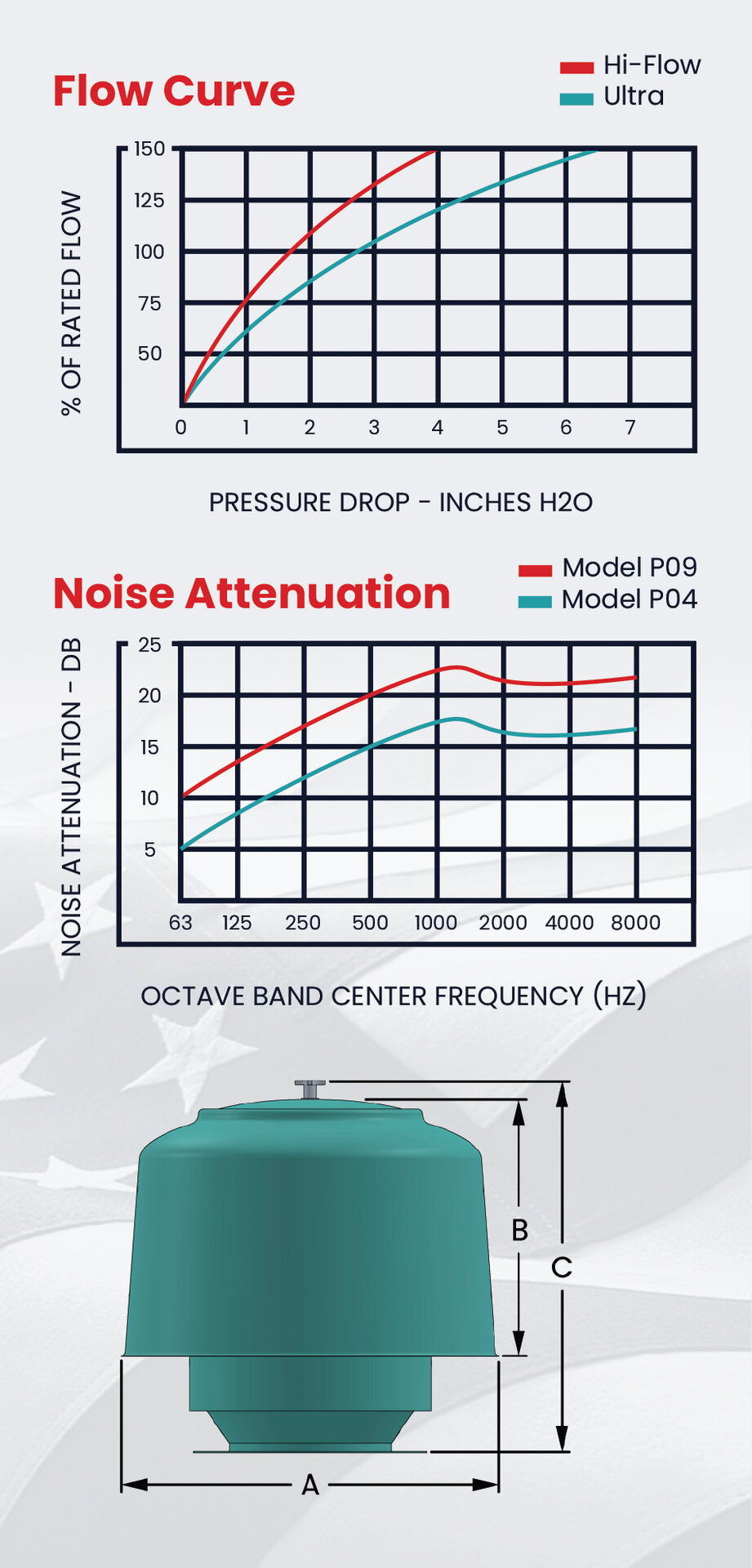

| Nominal Dimensions | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model # | Ultra Synthetic 99.97% eff. @ 1-μ (nom) | Hi-Flow Synthetic 98% eff. @ 10-μ (nom) | FLG Size | A | B | C | Rated Flow SCFM | Weight (nom.) |
| P09RG- | E045773 | E047933 | 3" | 17 | 9 | 20 | 600 | 30 |
| P09RH- | E045773 | E047933 | 4" | 17 | 9 | 20 | 900 | 30 |
| P09RR- | E045773 | E047933 | 5" | 17 | 9 | 20 | 1100 | 30 |
| P09RI- | E045773 | E047933 | 6" | 17 | 9 | 20 | 1350 | 30 |
| P09RI- | E045774 | E047934 | 6" | 26 | 12 | 23 | 2000 | 50 |
| P09RI- | E045775 | E047935 | 6" | 27 | 16 | 28 | 2250 | 60 |
| P09RJ- | E045774 | E047934 | 8" | 26 | 12 | 23 | 2500 | 60 |
| P09RJ- | E045775 | E047935 | 8" | 27 | 16 | 28 | 2900 | 70 |
| P09RJ- | E045776 | E047936 | 8" | 28 | 20 | 32 | 3300 | 75 |
| P09RK- | E045774 | E047934 | 10" | 26 | 12 | 23 | 3750 | 70 |
| P09RK- | E045775 | E047935 | 10" | 27 | 16 | 28 | 4000 | 75 |
| P09RK- | E045776 | E047936 | 10" | 28 | 20 | 32 | 4250 | 80 |
| P09RL- | E045775 | E047935 | 12" | 27 | 16 | 28 | 5150 | 80 |
| P09RL- | E045776 | E047936 | 12" | 28 | 20 | 32 | 6500 | 85 |
| P09RL- | E045777 | E047937 | 12" | 38 | 26 | 38 | 8250 | 90 |
| P09RM- | E045777 | E047937 | 14" | 38 | 26 | 38 | 12,000 | 105 |
| P09RN- | E045777 | E047937 | 16" | 38 | 26 | 38 | 15,000 | 115 |
| P09RS- | E045777 | E047937 | 18" | 38 | 26 | 38 | 18,000 | 125 |
Options:
- 3-6″ NPT connections
- Wire Mesh Medium, 60% @ AC Fine Dust
- Custom fittings
- Special coatings
- FDA/USDA standards
- Stainless Steel
- RAL Color Matching
